• Measures ¼” x 2″ x 12″ long
• Can be broken into 2″ sections

• Measures 3/4″ x 1″ x 14″ long
• Can be broken into 2″ sections

• Measures 3/16″ x 1″ x 12″ long
• Can be broken into 2″ sections

• Measures 3/8″ x ¾” x 14″ long
• Can be broken into 2″ sections

• Measures ½” x ½” x 14″ long
• Can be broken into 2″ sections

• Weld-on plate for sub soiler teeth
• Measures 5/8″ x 3″ x 10″ long

• Weld-on wear plate for sub-soiler/deep ripper teeth
• Measures 9/16″ x 2¼” x 4½” long

• Chromium carbon steel wear point to weld to harrow teeth for
  longer life, reduced down time
• Weld-on wear point
• Measures 5/8″ x 9/16″ x 4″ long

• Weld-on wear point
• Measures ½” wide by 4″ long with a sharp leading edge

• Weld-on wear point
• Measures 5/8″ wide by 4″ long with a V shape on one side

• Weld-on replacement point
• Fits ¾” or 1″ round fertilizer applicator shanks or light duty banding knives
• Carbide insert optional

• Fits both GEN and Dutch brands of banding knives
• Carbide insert optional

• Fertilizer banding knife weld-on replacement point
• Fits many different brands of knives
• Carbide insert optional

• Weld-on point fits on the leading edge of a new 3″ or 4″ spike, furrower or wide cultivator sweeps

• Weld-on point fits on top of a new 3″ twisted spike

• Weld-on point for worn 2″ chisel spikes

• Weld-on point for 2″ or narrower chisel spikes

‍

• Weld-on point for Nichols 2″ knock-on chisel spike

• Weld-on point fits on the leading edge of a new 2″ chisel spike

• Weld-on wear bar for cultivator sweep wings
• Measures 15″ long and can be broken into two sections

• GEN19 bar shown welded in place along with GEN48 point installed on the nose of the sweep

• Weld-on point for 2″ seeding spoon

• Weld-on points for 3″ to 14″ seeding spoons and cultivator sweeps
• Shown on 10″ used sweep. Sweep will last approximately 2-3 times longer with the wear point on and the nose will remain sharp throughout to enhance soil penetration

• Bolt-on wear point for Case eagle beak drill shoe
• Also fits late model Haybuster drills
• Carbide insert optional

• Pin-on wear point to fit late model Noble/Versatile hoe drills
  and air drills
• Carbide insert optional

• Pin-on wear point to fit the GEN H4 seeding units
• Also fits the Great Plains hoe drill shoe
• Carbide insert optional

• Pin-on style wear point to fit Acra Plant drill shoes with a 3/8″ insert
• Carbide insert optional

• Weld-on point for John Deere 2½” hoe drill shoe. Also fits Morris and Flexicoil air drill shoes

• Weld-on point for John Deere 1″ hoe drill spike

• Weld-on point for used Case 3″ or 5″ hoe drill shoes

• Weld-on point fits Case new 3″ or 5″ hoe drill shoes

• Weld-on BYFC points for Conserva Pac openers

• Right and left bolt-on packer plates to fit Case/Concord double shoot seeding opener
• Plates are thicker and harder than factory items

• Pin-on wear point with carbide insert for Case/Concord double shoot seeding opener on the edge-on shank

• Chrome deflector plate for Morris paired-row gumbo boot
• Thicker and heavier than factory plate for longer life
• Allows for more consistent seed placement and separation of seed from fertilizer

• Bolt-on wear point with carbide insert for the Morris Maxim air drill using the double shoot seeding opener
• Design assures consistent placement depth and prevents seed boot plugging

• 4″ spread point

• 3″ spread tip
• Carbide wings optional

• Pin-on style wear point to fit the GEN knock-on style seeding opener as well as Dutch seeding and fertilizer openers and late model Morris air drill boots
• Carbide insert optional
• 1″, 3″ and 4″ spread carbide points available with carbide wings optional

• Pin-on style wear point with carbide insert to replace Dutch #1525 point

• GEN Manufacturing will provide custom carbide installation on standard wear points of many brands

• GEN Manufacturing will provide custom carbide installation on standard wear points of many brands

• GEN Manufacturing will provide custom carbide installation on standard wear points of many brands

• Custom carbide installation on John Deere 1860 disc drill boot
• Gives boot several times longer life
• More consistent seed placement throughout the life of the seed boot

• Pin-on 1″ wear point for Bourgault openers
• The GEN 74-2″ point and GEN 59-3″ point will also fit on the Bourgault opener using our modified screw/nut or pin/nut system.

• Pin-on 3″ spread wear point for John Deere knife body
• Design assures consistent placement depth and spread of seed
• Carbide wings optional

• Pin-on 1″ point for John Deere knife body

• Pin-on 5½” spread wear point with carbide insert for Flexicoil stealth single shoot seeding unit and GEN 300 knife body
• Design assures consistent placement depth and soil penetration
• Carbide wings optional

• Pin-on 4″ spread wear point with carbide insert for Flexicoil stealth single shoot seeding unit and GEN 300 knife body
• Design assures consistent placement depth and soil penetration
• Carbide wings optional

• Pin-on 3″ spread wear point with carbide insert for Flexicoil Stealth single shoot seeding unit and GEN 300 knife body
• Design assures consistent placement depth and soil penetration
• Carbide wings optional

• Pin-on 2″ wear point with carbide insert for Flexicoil Stealth and GEN 300 knife bodies
• Design assures consistent placement depth and prevents excessive seed boot wear and plugging
• Carbide wings optional

• Pin-on wear point with carbide insert for Flexicoil Stealth and GEN 300 seeding units with narrow wear point
• Design assures consistent placement depth and prevents excessive seed boot wear and plugging
• 1″, 2″ and 3″ widths available

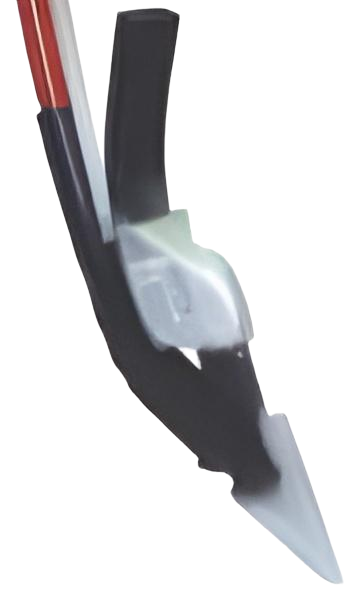

• Simultaneously injects liquid/anhydrous and granular fertilizers into a ¾” groove in the soil
• Separation between anhydrous and granular delivery tubes prevents freeze up
• Carbide insert optional on GEN 1 replaceable weld-on wear point development

• Used to rebuild worn W65 banding knife

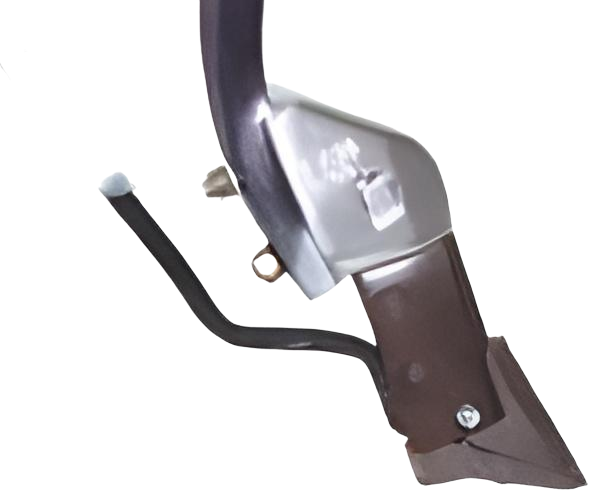

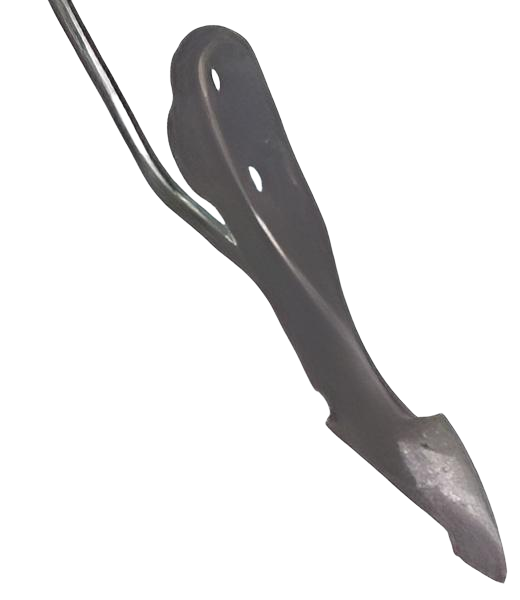

• Injects liquid or anhydrous fertilizer into a 1″ groove in the soil
• Bolts directly to cultivator shank

• Bourgault style 200 or 400 series knock-on knife
• Create 3/4″ – 1″ groove for NH₃ or liquid fertilizer placement
• Carbide insert optional on GEN 43 replaceable wear point

• Injects liquid or anhydrous fertilizer into a ¾” groove in the soil
• Carbide insert optional on GEN 1 replaceable weld-on wear point

• Injects liquid or anhydrous fertilizer into a ¾”-1″ groove
  in the soil
• Carbide insert optional on GEN 30 replaceable wear point

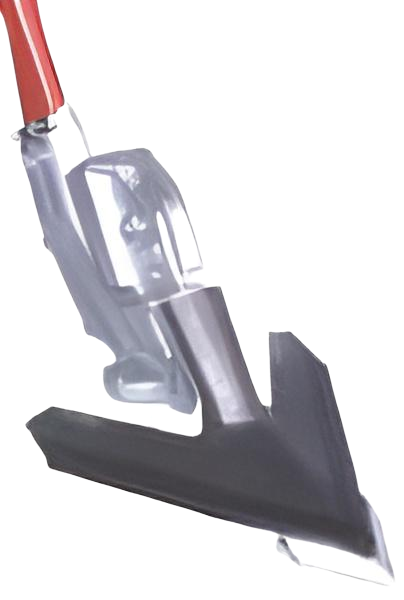

• Creates two seed rows (1″ width) and one fertilizer row deeper than the seed rows
• For use with 500 lbs. or greater trip air seeder shank
• Knock-on adapter accepts 4″-12″ Bourgault knock-on sweeps
• Can be used to seed along with granular or liquid fertilizers
• Use of sweep wear point recommended to assure longer sweep wear and proper fertilizer placement

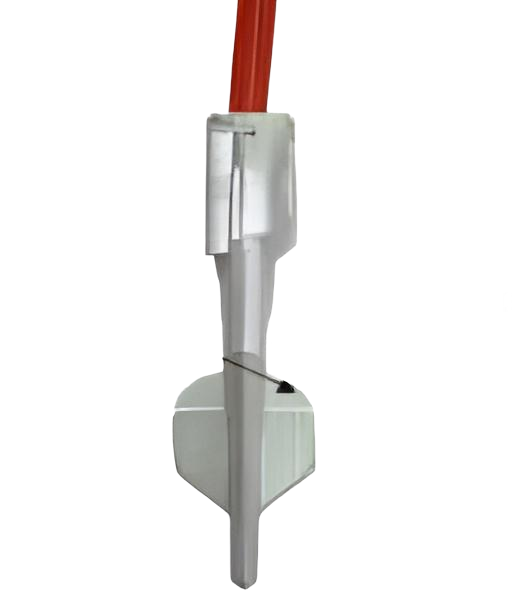

• Creates two seed rows (1″ width) and one fertilizer row deeper than the seed rows
• Overall opener width is 4″
• For use with 500 lbs. or greater trip air seeder shank
• Can be used to seed along with granular, liquid or anhydrous fertilizers
• Features carbide insert on GEN50 replaceable wear point

• Optional holder for use with Case/Concord edge-on shank

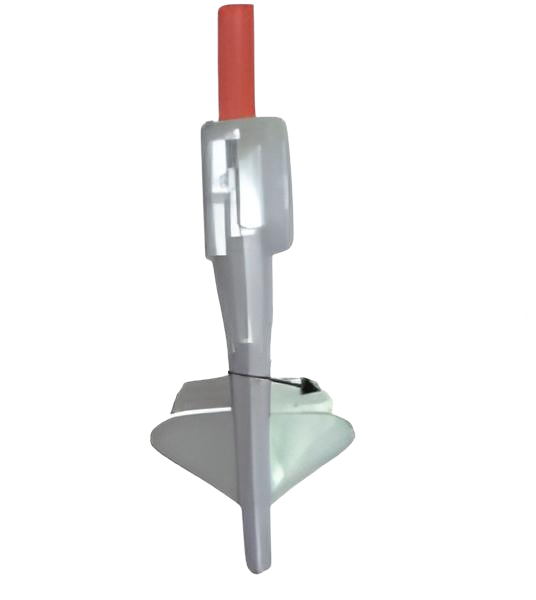

• Creates two seed rows (1½” width) and one fertilizer row deeper than the seed rows
• Overall opener width is 6″
• For use with 500 lbs. or greater trip air seeder shank
• Seed rows are completely separated from fertilizer row
• Can be used to seed along with granular, liquid or anhydrous fertilizers
• Features carbide insert on GEN33 replaceable wear point

‍

• Creates two seed rows (1″ width) and one fertilizer row only slightly deeper than the seed rows
• Overall opener width is 4½”
• For use with 500 lbs. or greater trip air seeder shank
• Can be used to seed along with granular or liquid fertilizers
• GEN 77 wear point is complete with large carbide insert
• Carbide on wings optional
• For narrower shank spacing, a 3″ side band point is available which allows placement of only one seed row and a separate fertilizer row
• Also available are 1″ to 5½” spread points which can be used on this opener. Use of these wear points converts the GEN 300 T2 to a single shoot opener.

‍

• Creates a 3″ seed row for more in-row fertilizer placement
• Includes carbide GEN 66 wear point
• Optional liquid or NH3 fertilizer tube
• Carbide on wings optional

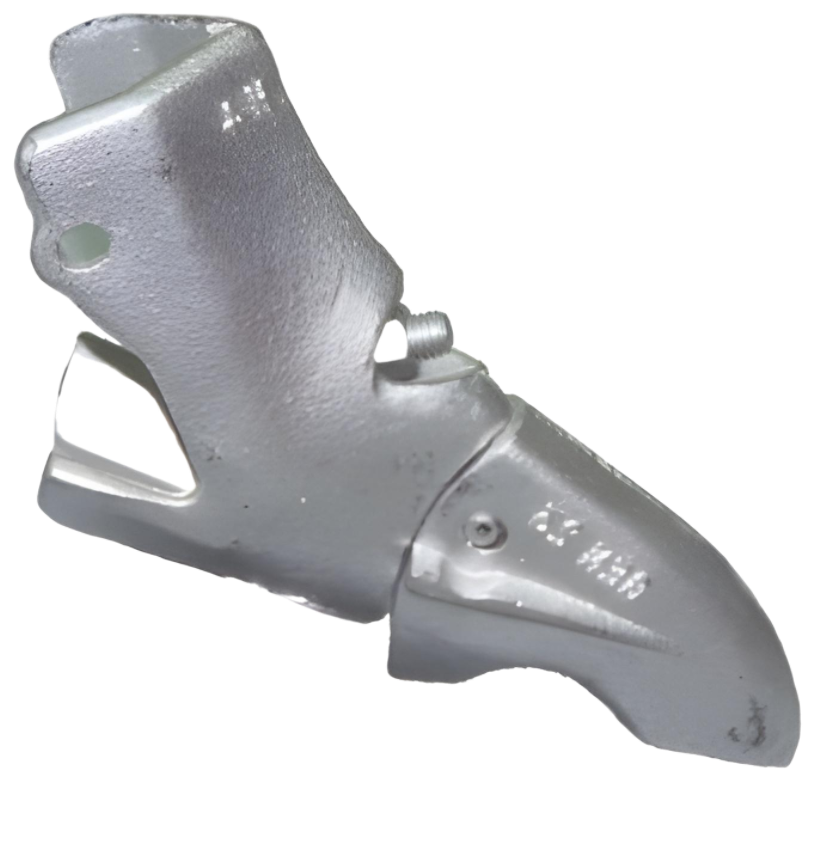

• Eagle beak style opener for John Deere LZB, 9350 and 9450 hoe drills. Also fits the 737 air hoe drill and the 1820 air drill with the hoe shank
• Creates ¾” furrow
• Seed is dropped into a V-shaped groove – results in better seed placement for improved germination and root development
• Carbide insert optional on GEN 23 replaceable wear point

• Also available in 3″ on Gen 54 point

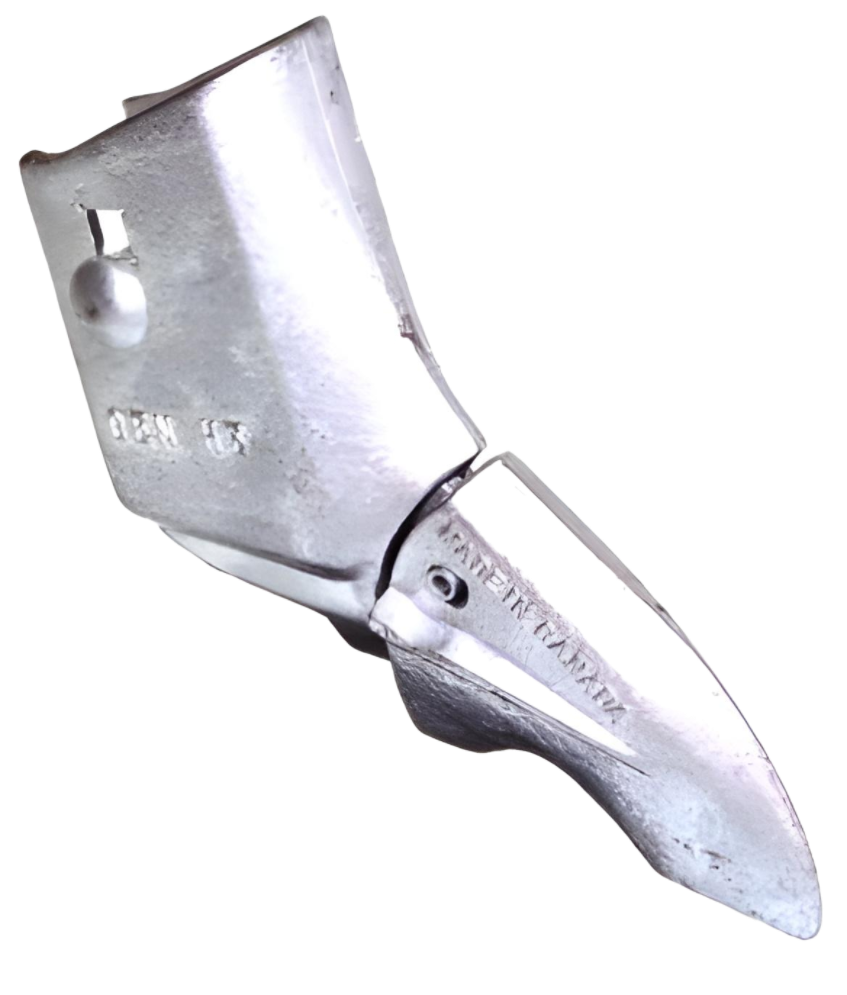

• Eagle beak style opener for Morris Maxim air drill with edge-on shank and for Morris MH 310 drill
• Creates ¾” furrow
• Seed is dropped into a V-shaped groove – results in better seed placement for improved germination and root development
• Carbide insert optional on GEN 43 replaceable wear point

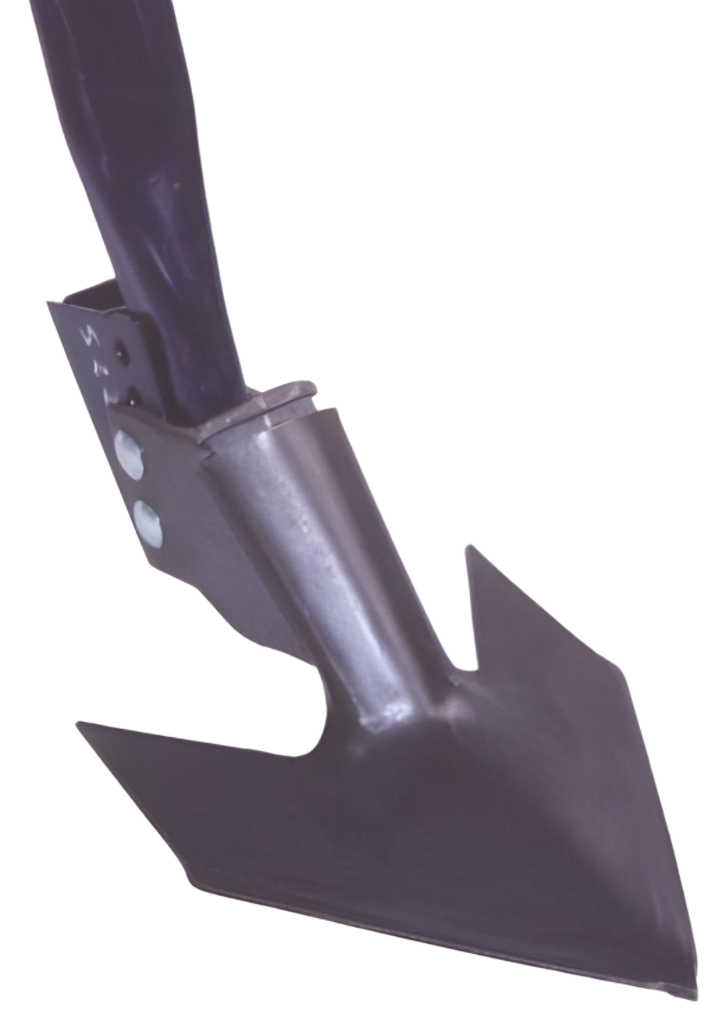

• Allows for the use of Nichols knock-on sweeps on the Morris Maxim air drill with the edge-on shank

• GEN KOK54 opener shown with the optional liquid or NH3 tube

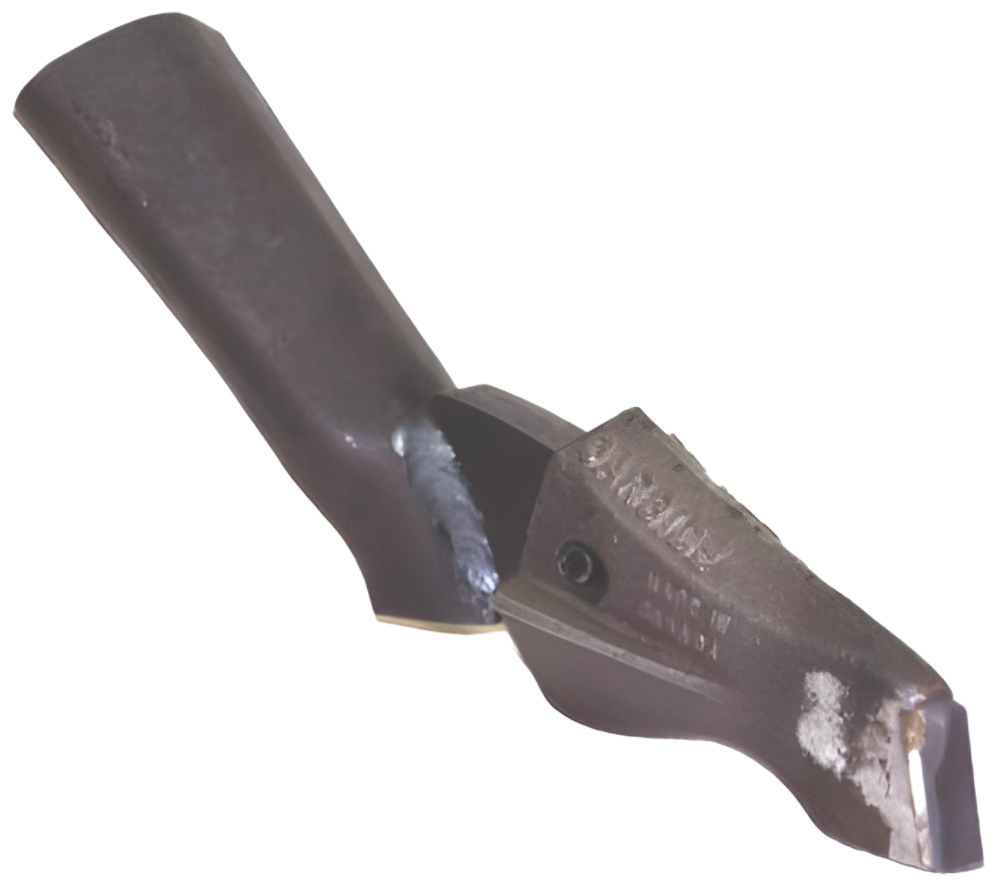

• Bourgault style 200 or 400 series knock-on
• Creates 3″ wide seed band
• Available with carbide insert only
• Carbide on wings optional
• GEN 69 — 4″ spread point also available

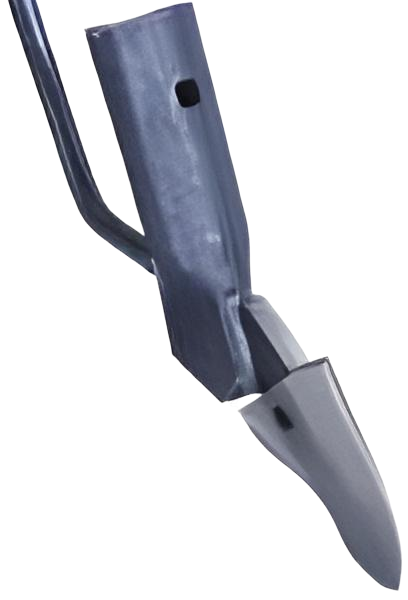

• Bourgault style 200 or 400 series knock-on knife
• Creates 1″ wide furrow
• Can be used for seed and/or fertilizer placement
• Carbide insert optional on GEN 43 replaceable wear point

• 1”, 3” and 4” seed spreads available.
• Optional liquid tube shown

• Creates a 1″ wide furrow
• For use with 350 lbs. or greater trip air seeder shank
• Complete with heavy V-shaped carbide insert
• Can be used for seed and/or fertilizer placement
• Also available with 2″ GEN 74 or 3″ GEN 59 carbide spread point

• Creates a 4″ wide furrow
• Also available with 5½” GEN 65 carbide spread point
• Carbide wings optional
